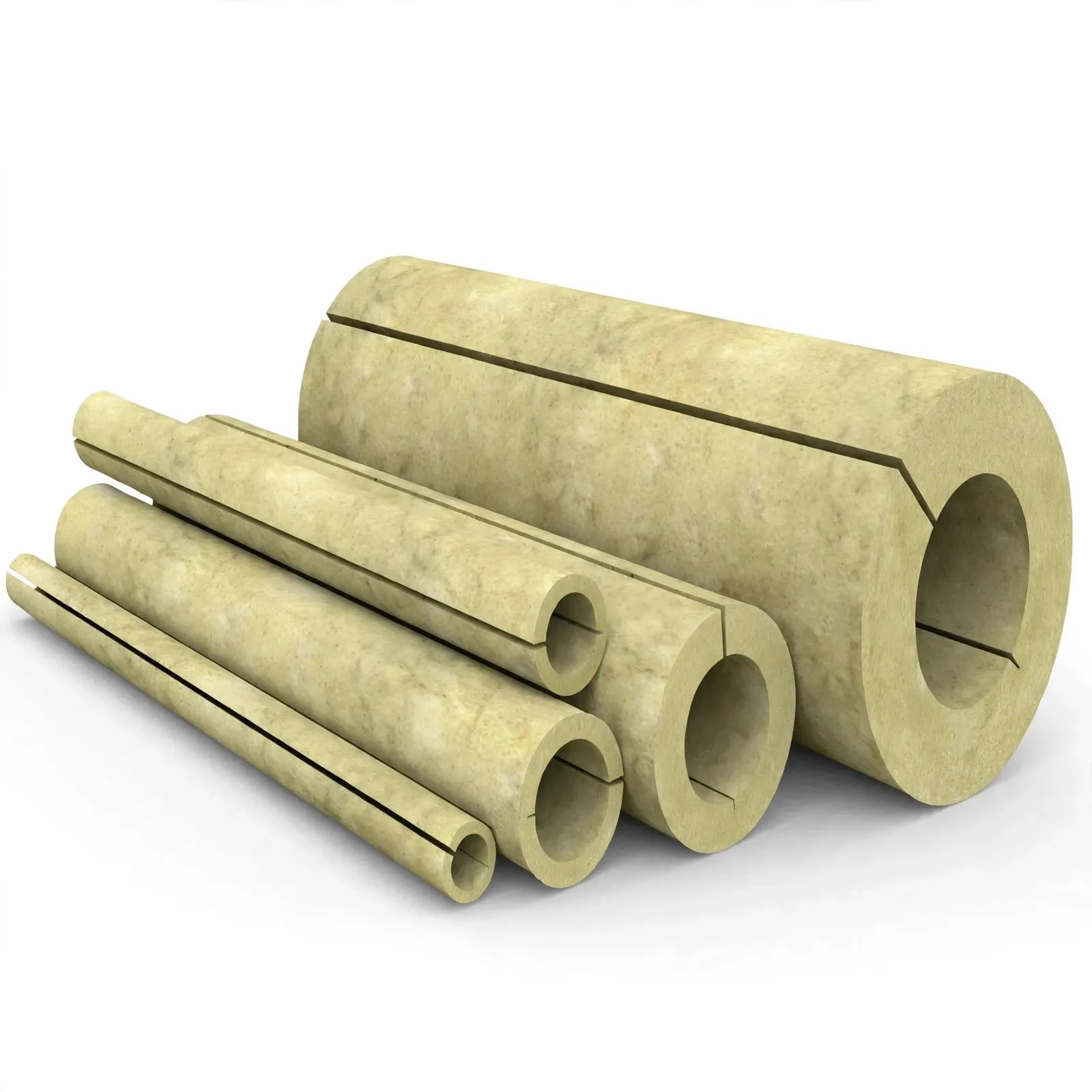

Rockwool Pipe Section
Pre-formed stone wool insulation designed for efficient thermal protection of pipelines, HVAC systems, and industrial process equipment.
Rockwool Pipe Section
Reliable Pipe Insulation for Industrial & HVAC Systems
Rockwool Pipe Sections are manufactured from high-quality inorganic stone wool fibres, providing effective thermal insulation for small and large diameter piping systems. Their pre-formed cylindrical design ensures easy installation, accurate fitting, and consistent insulation performance.
Designed for industrial and commercial applications, these pipe sections help minimise heat loss, improve energy efficiency, reduce surface condensation, and provide reliable fire protection. They are suitable for a wide range of operating conditions including steam lines, heating systems, HVAC networks, and process pipelines.
Available with different facing options such as glass fibre reinforced aluminium foil, kraft paper laminate, and ALG, Rockwool Pipe Sections provide a durable insulation solution for demanding environments.
Technical Specifications of Rockwool Pipe Section
Detailed physical and thermal properties defining the performance characteristics of Rockwool Pipe Sections.
| Density | 100 / 128 / 130 / 136 / 144 Kg/m³ |
| Length | 1.0 / 1.2 / 1.25 m |
| Pipe Diameter | ½" to 18" |
| Thickness | 25 – 100 mm |
| Temperature Range | Up to 750°C |
| Fire Properties | Fire Retardant |
| Combustibility | Non-Combustible |
| Thermal Conductivity | 0.034 W/m·K (at 25°C) |
| Facing Options | Glass Fiber Reinforced Aluminium Foil / Kraft Paper Laminate / ALG |
| Water Vapor Absorption | Less than 1% by volume |
| Flexibility | Rigid |
Applications of Rockwool Pipe Section
Rockwool Pipe Sections are widely used for insulating piping systems where thermal efficiency, fire safety, and condensation control are important.
Steam Pipes
Provides effective insulation for high-temperature steam distribution systems.
Hot Water Pipes
Helps maintain temperature and reduce energy loss in hot water pipelines.
Industrial Process Pipelines
Suitable for insulation of process piping in manufacturing facilities.
Heating & Ventilation Systems
Used in HVAC networks for thermal control and improved efficiency.
Oil & Chemical Pipelines
Provides reliable insulation support in demanding industrial environments.
Power Plant Piping Systems
Used for thermal protection of critical piping networks.
Need Efficient Insulation for Your Piping Systems?
Choose reliable Rockwool Pipe Sections from Spentex Allied of India for industrial, HVAC, and process pipeline insulation requirements.
