PUF (Polyurethane Foam)
Rigid closed-cell polyurethane foam insulation available in sheet and pipe section forms for reliable thermal performance across industrial and commercial applications.
Sheet
Pipe Section
PUF (Polyurethane Foam)
High-Performance Polyurethane Foam for Thermal Insulation
PUF (Polyurethane Foam) Insulation is available in both rigid sheets and preformed pipe sections to meet a variety of insulation requirements. Manufactured with a closed-cell structure, it delivers excellent thermal insulation, low heat transfer, and long-lasting performance while helping improve energy efficiency.

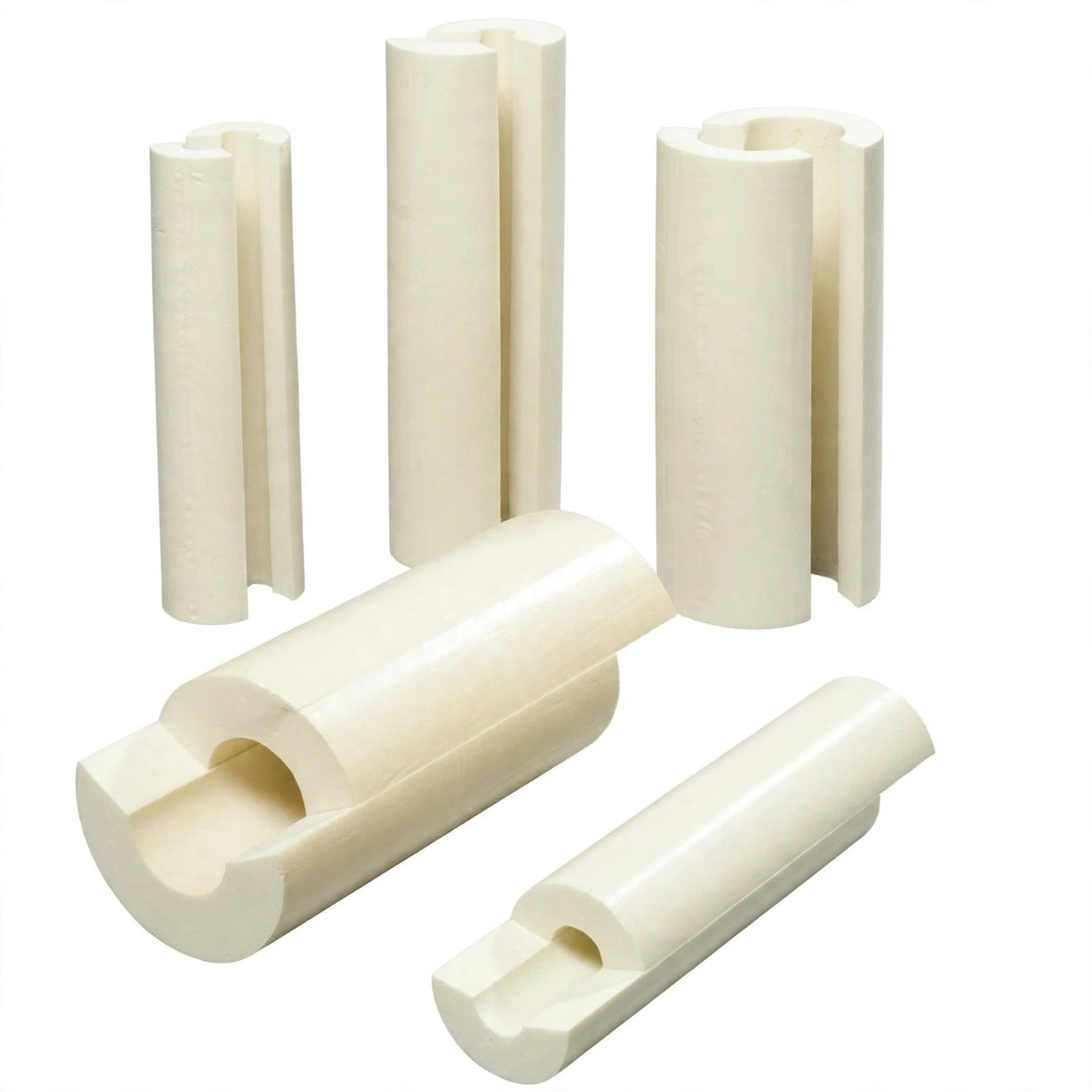

PUF Sheets are ideal for insulating roofs, walls, floors, and flat surfaces, while PUF Pipe Sections are designed for pipelines, tanks, and process equipment requiring dependable thermal protection. Both variants provide durable insulation solutions for industrial, refrigeration, and cold storage applications.
Technical Specifications of PUF Insulation
The following specifications define the physical and performance characteristics of our PUF Insulation products.
| Density | 36 – 40 Kg/m³ | Compressive Strength | 205 kN/m² |
| Cell Structure | Closed Cell | Water Absorption | 0.5% by Volume |
| Thickness (Block) | 15 – 300 mm | Water Vapour Permeability | 5.5 max (ng/Pa·s·m) |
| Dimensions (Block) | 1 m (L) × 0.5 m (W) | Thermal Conductivity | 0.021 W/m·K @ 10°C |
| Temperature Range | -40°C to +110°C |
| Density | 36 – 40 Kg/m³ |
| Cell Structure | Closed Cell |
| Thickness (Block) | 15 – 300 mm |
| Dimensions (Block) | 1 m (L) × 0.5 m (W) |
| Temperature Range | -40°C to +110°C |
| Thermal Conductivity | 0.021 W/m·K @ 10°C |
| Compressive Strength | 205 kN/m² |
| Water Absorption | 0.5% by Volume |
| Water Vapour Permeability | 5.5 max (ng/Pa·s·m) |
| Density | 36 – 40 Kg/m³ |
| Cell Structure | Closed Cell |
| Thickness (Block) | 15 – 300 mm |
| Dimensions (Block) | 1 m (L) × 0.5 m (W) |
| Temperature Range | -40°C to +110°C |
| Thermal Conductivity | 0.021 W/m·K @ 10°C |
| Compressive Strength | 205 kN/m² |
| Water Absorption | 0.5% by Volume |
| Water Vapour Permeability | 5.5 max (ng/Pa·s·m) |
Applications & Advantages
PUF Insulation is widely used where high thermal efficiency and reliable insulation performance are required.
Applications
Why Choose PUF Insulation?
Looking for Reliable Polyurethane Foam Insulation?
Choose PUF Insulation from Spentex Allied of India for dependable thermal performance across industrial, commercial, refrigeration, and cold storage applications.
